Understanding Voltage Drop

1. What exactly is voltage drop, anyway?

Okay, let's talk voltage drop. Think of it like this: electricity is water flowing through a pipe (a wire). As the water travels, some of the pressure is lost due to friction along the pipe. That lost pressure is similar to voltage drop. It's the gradual loss of electrical potential as current travels through a conductor, like a wire, cable, or even a component in a circuit. The longer the wire, the smaller the wire size, or the more current flowing through it, the bigger the voltage drop. It's just physics, really! It's never completely avoidable, but too much of it can cause problems.

Now, why do we even care about this seemingly dull subject? Well, excessive voltage drop can lead to dim lights, appliances not working correctly, motors running inefficiently (or not at all!), and in extreme cases, even overheating wires and potential fire hazards. Nobody wants that, right? So, understanding and managing voltage drop is crucial for safe and efficient electrical systems.

Imagine trying to bake a cake with an oven that's only getting 80% of the power it needs. It's going to take forever, and it might not even bake properly! The same principle applies to all electrical devices. They need the correct voltage to operate as intended. Too little voltage, and they'll struggle or fail. That's why preventing excessive voltage drop is a key concern for electricians and electrical engineers. We want everything to work as intended.

You might be thinking, "This sounds complicated!" It can be, but the basic concept is simple: electricity loses some of its "oomph" as it travels. Our goal is to keep that "oomph" loss within acceptable limits. Let's find out what is acceptable.

Is 4% Voltage Drop OK? The Big Question!

2. The acceptable range

Alright, let's get to the heart of the matter: Is a 4% voltage drop acceptable? The short answer is... it depends. Generally speaking, in many common applications, a voltage drop of 4% is often considered the upper limit of what's acceptable. Electrical codes, like the National Electrical Code (NEC) in the US, typically recommend limiting voltage drop to no more than 3% for branch circuits and 5% for feeders. However, there's some wiggle room and depends on a lot of factor.

Think of it like driving a car. Is 70 mph okay? It depends on the speed limit, the road conditions, and the type of car you're driving! Similarly, the acceptability of a 4% voltage drop depends on the specific application. For sensitive electronic equipment, even a small voltage drop could cause malfunctions. For less critical applications, a slightly higher drop might be tolerable. Always know the application!

Different jurisdictions and applications have different standards, so it's crucial to consult the relevant electrical codes and regulations for your specific situation. These codes are there for a reason — to ensure safety and prevent problems down the line. Don't just guess! Look them up.

Ultimately, the best practice is to aim for the lowest possible voltage drop. Minimizing voltage drop not only ensures optimal performance of electrical equipment but also reduces energy waste and improves the overall efficiency of the electrical system. The less energy you waste, the more money you save, and the happier your electrical system will be!

Factors Influencing Voltage Drop

3. What causes voltage drop, and how can we mitigate them?

Several factors contribute to voltage drop, and understanding these factors is key to managing it effectively. The primary culprits include the length of the wire, the wire gauge (thickness), the amount of current flowing through the wire, and the type of conductor material (copper or aluminum). Longer wires, smaller gauge wires, and higher currents all lead to increased voltage drop. It's all intertwined!

Wire resistance is the primary cause of voltage drop. The longer the wire, the higher the resistance; the smaller the wire gauge, the higher the resistance. Also, aluminum has a higher resistance than copper, meaning you will get a higher voltage drop with an aluminium wire compared to a copper wire. This relationship is described by Ohm's Law (V = IR), where voltage drop (V) is equal to current (I) multiplied by resistance (R). In other words, high current and high resistance leads to high voltage drop.

Think of it like this: Imagine trying to squeeze a lot of water through a narrow straw versus a wide pipe. The narrow straw (small gauge wire) offers more resistance, resulting in a drop in water pressure (voltage). Similarly, a long straw (long wire length) will also cause a greater pressure drop. The more water you try to push through (high current), the more pronounced the pressure drop will be!

To minimize voltage drop, it's essential to select the appropriate wire size for the intended application. Using thicker wires (larger gauge) reduces resistance and allows for more current to flow with less voltage drop. It's also important to keep wire lengths as short as possible and use high-quality conductors like copper whenever feasible. Careful planning and attention to these details can significantly reduce voltage drop and improve the performance of your electrical system.

Calculating Voltage Drop

4. Tools and methods for accurate calculations.

Alright, it's time to put on our math hats (metaphorically, of course!). Calculating voltage drop might seem daunting, but it's actually quite manageable with the right tools and knowledge. The most common method involves using Ohm's Law (V = IR), along with some basic electrical formulas and tables that provide resistance values for different wire sizes and materials. Don't worry; you don't have to memorize everything!

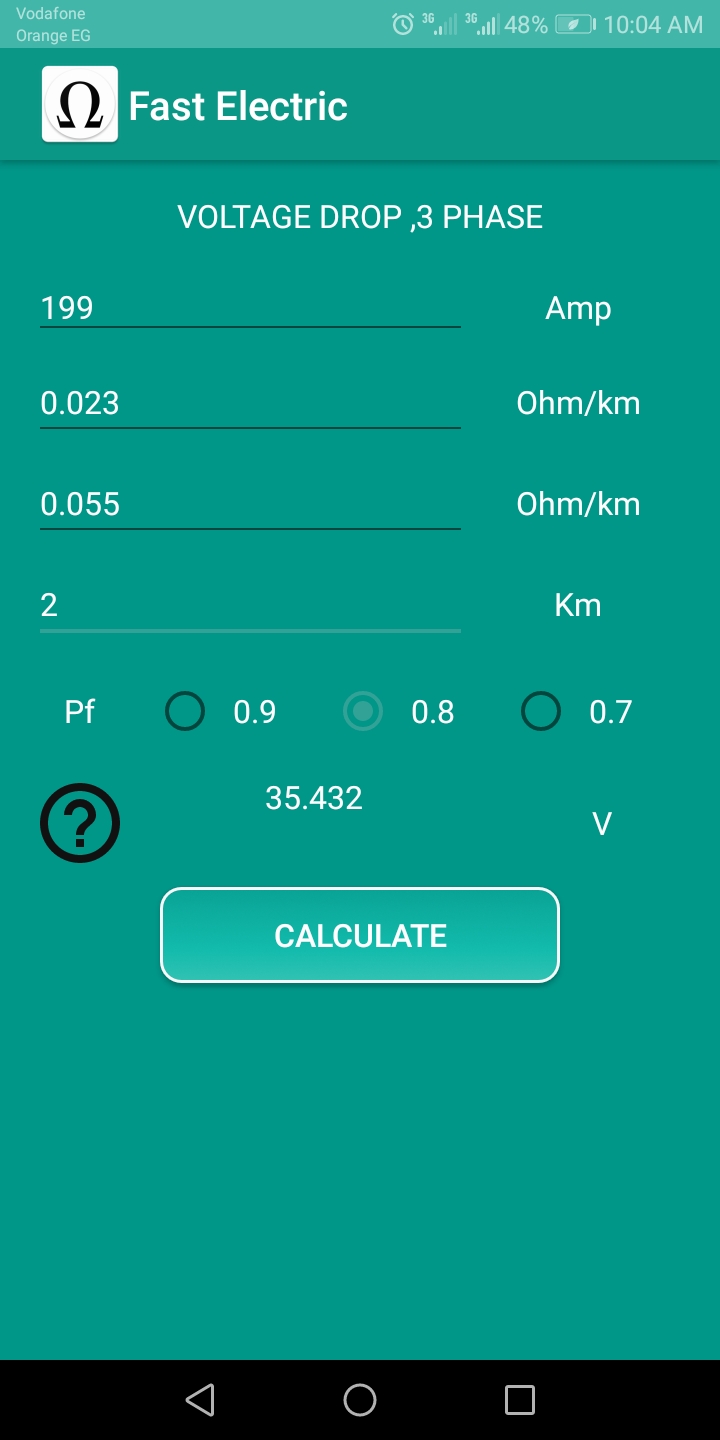

Many online voltage drop calculators are available, and these can be incredibly helpful for simplifying the process. These calculators typically require you to input information like wire length, wire gauge, current, and voltage, and they'll automatically calculate the voltage drop percentage. Be sure to double-check the results to ensure the values are accurate.

If you prefer a more hands-on approach, you can use the following formula: Voltage Drop = (2 Length Current * Resistance per foot) / 1000. Where: Length is the one-way wire length in feet, Current is the current flowing through the wire in amps, and Resistance per foot is the resistance of the wire per foot of length (obtained from wire tables). The factor of "2" accounts for the voltage drop on both the outgoing and return conductors.

Remember to account for all factors that can influence voltage drop, such as temperature variations and conductor type. Consulting with a qualified electrician is always a good idea, especially for complex electrical systems. They can help you accurately calculate voltage drop and ensure that your system meets all applicable codes and regulations. A little expert advice can go a long way in preventing problems and ensuring the safety and efficiency of your electrical system.

Practical Tips to Minimize Voltage Drop

5. Easy ways to keep your voltage in check.

Okay, now that we've covered the theory and calculations, let's talk about practical steps you can take to minimize voltage drop in your electrical system. The first and perhaps most important step is to choose the correct wire size for the intended load. Using thicker wires (larger gauge) reduces resistance and allows for more current to flow with less voltage drop. It's always better to err on the side of caution and go a bit larger than you think you need!

Another effective strategy is to keep wire lengths as short as possible. The longer the wire, the greater the voltage drop, so try to locate electrical panels and equipment as close as possible to the loads they serve. This might involve some careful planning and consideration during the design phase of your project, but it can pay off in the long run by reducing voltage drop and improving overall system efficiency.

Consider using copper conductors instead of aluminum conductors whenever feasible. Copper has a lower resistance than aluminum, meaning it will experience less voltage drop for the same wire size and current. Copper is generally more expensive than aluminum, but the improved performance and efficiency can often justify the added cost. You could also consider running parallel conductors to decrease the overall resistance.

Finally, be sure to properly maintain your electrical system and address any potential problems promptly. Loose connections, corroded terminals, and damaged wires can all increase resistance and contribute to voltage drop. Regular inspections and maintenance can help identify and correct these issues before they become major problems. And don't forget, if you're not comfortable working with electricity, always call a qualified electrician to handle any repairs or upgrades!

FAQ

6. Your burning questions, answered!

Q: What happens if the voltage drop is too high?

A: Excessive voltage drop can cause a whole host of problems, including dim lights, malfunctioning appliances, inefficient motor operation, overheating wires, and even potential fire hazards. It's definitely something you want to avoid!

Q: How do I measure voltage drop?

A: You can measure voltage drop using a multimeter. Simply measure the voltage at the source (e.g., the electrical panel) and then measure the voltage at the load (e.g., an outlet). The difference between the two measurements is the voltage drop. Make sure the circuit is under a normal load when you measure it!

Q: Can I use aluminum wiring instead of copper to save money?

A: While aluminum wiring is cheaper than copper, it has a higher resistance and experiences more voltage drop. If you choose to use aluminum wiring, you'll need to use a larger gauge wire to achieve the same level of performance as copper. Be sure to consult with a qualified electrician to ensure that the aluminum wiring is installed safely and correctly.

Q: Does temperature affect voltage drop?

A: Yes, temperature can affect voltage drop. As the temperature of a conductor increases, its resistance also increases, leading to higher voltage drop. This is particularly important to consider in high-temperature environments or when dealing with high-current applications.
